Processor & Chipset |
| Chipset Manufacturer |
Intel |
| Chipset Model |
X299 |
| Total Processor Supported |
1 |
| Processor Socket |
Socket R4 LGA-2066 |
| Processor Supported |
Core X-Series |
Memory |
| Number of Memory Slots |
8 |
| Memory Form Factor |
UDIMM |
| Memory Form Factor |
DIMM |
| Maximum Memory Supported |
128 GB |
| Memory Technology |
DDR4 SDRAM |
| Memory Speed Supported |
1866 MHz |
| Memory Speed Supported |
2666 MHz |
| Memory Speed Supported |
2400 MHz |
| Memory Speed Supported |
2133 MHz |
| Memory Speed Supported |
1600 MHz |
| Intel Optane Memory Ready |
Yes |
I/O Controller |
| Controller Type |
Serial ATA/600 |
| RAID Supported |
Yes |
| RAID Levels |
10 |
| RAID Levels |
5 |
| RAID Levels |
1 |
| RAID Levels |
0 |
Video |
| Onboard Video |
On-board Video Chipset |
| Graphics Controller Manufacturer |
ASPEED |
| Graphics Controller Model |
AST2500 |
Network & Communication |
| Gigabit Ethernet |
Yes |
I/O Expansions |
| Total Number of Expansion Slots |
5.0 |
| Total Number of PCI Express Slots |
5 |
| Number of PCI Express x1 Slots |
1 |
| Number of PCI Express x16 Slots |
4 |
Interfaces/Ports |
| Total Number of USB Ports |
6 |
| Number of USB 3.0 Ports |
2 |
| Number of USB 3.1 Ports |
4 |
| VGA |
Yes |
Onboard Interfaces |
| Number of SATA Interfaces |
6 |
| Number of M.2 Interfaces |
2 |
| Total Number of Onboard USB Ports |
6 |
| Number of Onboard USB 3.0 Ports |
2 |
Physical Characteristics |
| Form Factor |
ATX |
| Width |
12" |
| Depth |
9.6" |
Miscellaneous |
| Package Contents |

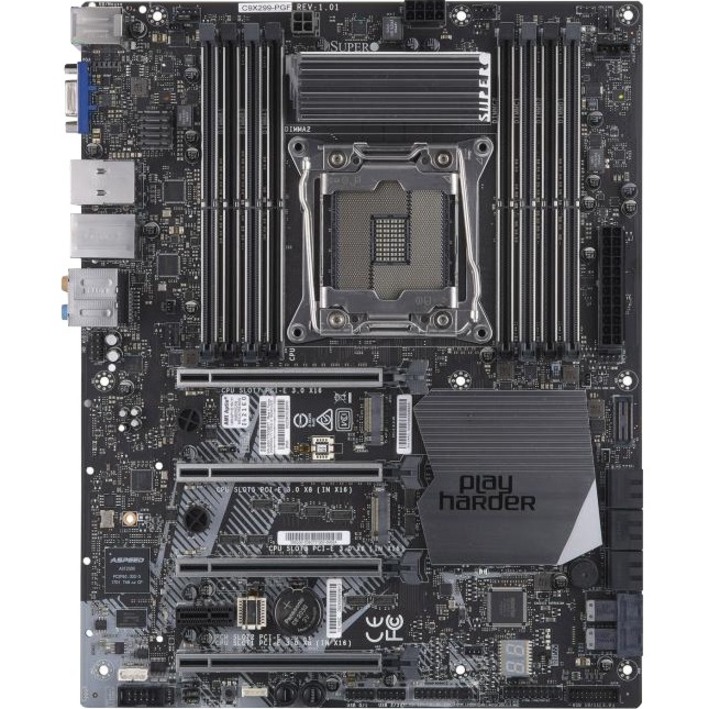

- C9X299-PGF Desktop Motherboard
- 2 x SATA Cable
- 1 x IO Shield
|
| Compatibility |
SuperChassis:
- SCGS5A-753K
- SCGS5A-753R
- SC732D3-903B
- SC732D3-1200B
- SC743AC-668B
- SC743AC-1200B-SQ
|
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance |
Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty |
| Limited Warranty |
1 Year |
