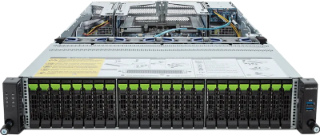

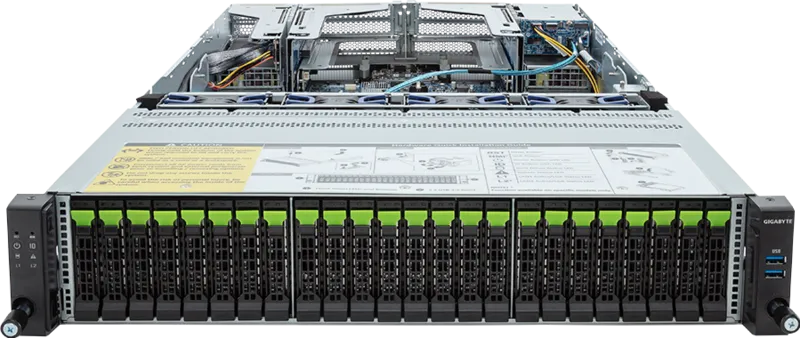

T-Bird-DP-24 High-Performance Enterprise Server
The T-Bird-DP-24 is an enterprise-grade high-performance server engineered for demanding artificial intelligence (AI), machine learning (ML), high-density storage, and enterprise data processing workloads. Built within a compact 2U rackmount chassis, this dual-socket platform supports up to 24 front hot-swappable 2.5-inch Gen5 NVMe/SATA/SAS-4 drive bays, exceptional memory bandwidth, and flexible high-speed PCIe Gen5 expansion options.
Powered by dual 5th or 4th Gen Intel® Xeon® Scalable Processors (or dual Intel® Xeon® CPU Max Series processors), the T-Bird-DP-24 delivers an exceptionally versatile foundation for advanced computing environments. Featuring advanced DDR5 memory architecture, high-speed PCIe Gen5 expansion slots, flexible storage options, and a robust redundant power infrastructure, it is optimized for enterprise cloud infrastructure, high-density data centers, and compute-intensive applications.
Flexible Dual-Processor Architecture: Powered by dual 5th/4th Gen Intel® Xeon® Scalable processors or dual Intel® Xeon® CPU Max Series processors (TDP up to 350W per socket).
High-Capacity DDR5 Memory: Features 32 DIMM slots utilizing an 8-channel DDR5 RDIMM memory architecture per processor for superior bandwidth.
Advanced PCIe Gen5 Expansion: Includes multiple high-speed PCIe Gen5 expansion slots and dual OCP NIC 3.0 slots designed for high-speed networking and add-in cards.
High-Density Storage Configuration: Provides 24 hot-swappable 2.5-inch Gen5 NVMe/SATA/SAS-4 front drive bays plus 2 x 2.5-inch SATA/SAS-4 rear hot-swap drive bays for fast data access.
Integrated Dual 1GbE Networking: Equipped with 2 x 1Gb/s LAN ports via Intel® I350-AM2 controller.
System Reliability: Dual ROM architecture supports advanced firmware redundancy and system management flexibility.
Redundant Power Design: Features a resilient redundant power supply configuration utilizing high-efficiency dual 2000W 80 PLUS Titanium power supplies.
Form Factor
• 2U Rackmount Server Chassis (438W x 87.5H x 815D mm)
Processor
• Dual-socket platform (2 x LGA 4677, Socket E)
• Supports 5th and 4th Gen Intel® Xeon® Scalable Processors (TDP up to 350W)
• Supports dual Intel® Xeon® CPU Max Series processors
Memory
• 8-channel DDR5 RDIMM architecture per processor
• 32 x DIMM slots (Supports up to 5600 MT/s RDIMM)
GPU and Expansion
• Full-Height and Low-Profile PCIe Gen5 x16 slots
• 2 x OCP NIC 3.0 slots (PCIe Gen5 x16) with NCSI support
Storage
• Front hot-swap: 24 x 2.5" Gen5 NVMe/SATA/SAS-4 drive bays
• Rear hot-swap: 2 x 2.5" SATA/SAS-4 drive bays
Networking & I/O
• 2 x 1Gb/s RJ45 LAN ports (Intel® I350-AM2)
• 1 x 10/100/1000 Mbps Management LAN port
• Front and rear USB 3.2 Gen1 ports
• Mini-DP video output (integrated via ASPEED AST2600)
System Architecture
• Dual ROM architecture
• ASPEED AST2600 Baseboard Management Controller with GIGABYTE Management Console
Power Supply
• Dual 2000W 80 PLUS Titanium redundant power supplies
The T-Bird-DP-24 is built for organizations, research institutions, and technical teams that require high-density computing and high-throughput storage performance for workloads such as:
• High-density cloud computing and enterprise virtualization
• Artificial intelligence and machine learning model inference
• High-performance data analytics and enterprise database storage
• Software-defined storage (SDS) and data center virtualization
• Enterprise IT infrastructure and compute-intensive workloads
Combining dual Intel® Xeon® processor options, high-speed DDR5 memory, PCIe Gen5 expansion, 24-bay front storage capability, and a resilient redundant power supply, the T-Bird-DP-24 provides a robust and scalable foundation for demanding data centers. Its extensive expansion capabilities allow system configurations to be precisely tailored to specific workload requirements, making it a leading platform for organizations building or expanding their enterprise IT infrastructure.
