This 6ft High Resolution Video VGA Cable (90 degree) is designed to provide the highest video quality possible through a VGA connection and is specifically constructed to accomodate tight installation spaces.

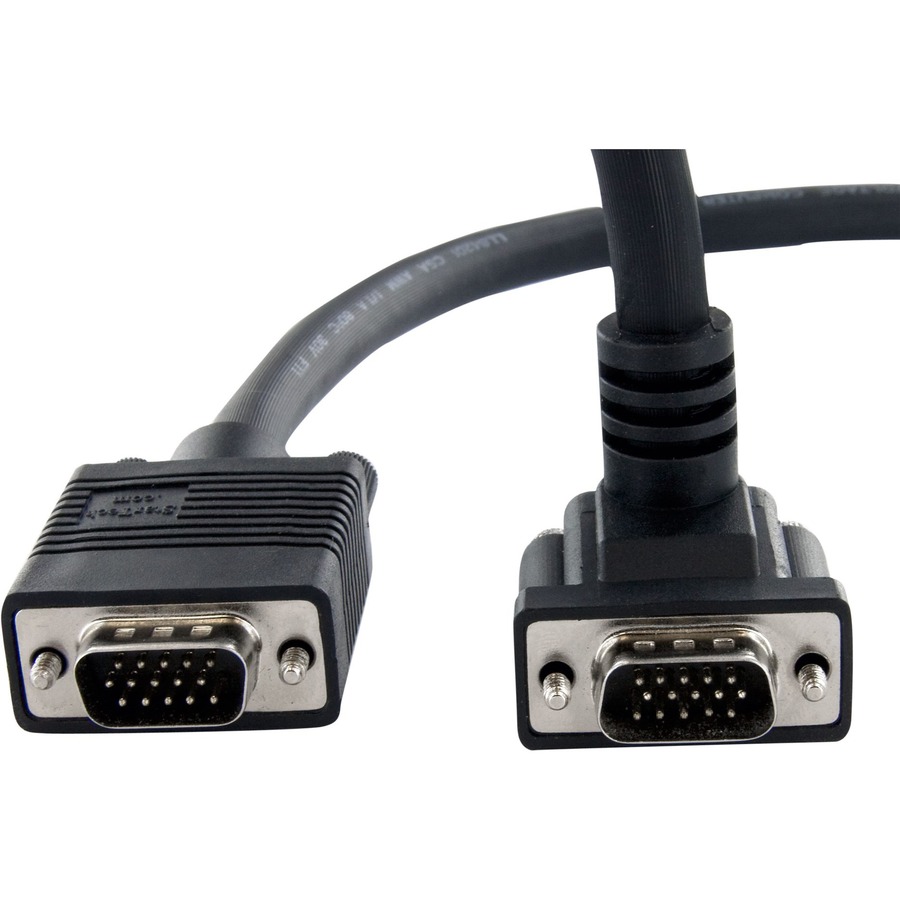

The high quality, shielded coax VGA cable features a 90 degree down-angled plug, which requires only 32.4mm (1.27") of space to make the video connection.
More than suitable for high-res VGA applications (1280x1024 resolution and above), the 90 degree VGA cable eliminates picture "ghosting" and fuzzy images that are common with non-coaxial cables, and provides superior EMI interference protection using ferrite cores near the connector ends.
More from the Manufacturer
| |
| Transource eSKU | 1014341640 |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MXT101MMHD6 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 6 ft 90 Degree Down Angled VGA Monitor Cable |
| Product Type | Video Cable |
| |
| General Information |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MXT101MMHD6 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 6 ft 90 Degree Down Angled VGA Monitor Cable |
| Marketing Information | This 6ft High Resolution Video VGA Cable (90 degree) is designed to provide the highest video quality possible through a VGA connection and is specifically constructed to accomodate tight installation spaces.
The high quality, shielded coax VGA cable features a 90 degree down-angled plug, which requires only 32.4mm (1.27") of space to make the video connection.
More than suitable for high-res VGA applications (1280x1024 resolution and above), the 90 degree VGA cable eliminates picture "ghosting" and fuzzy images that are common with non-coaxial cables, and provides superior EMI interference protection using ferrite cores near the connector ends. More from the Manufacturer |
| Product Type | Video Cable |
| Technical Information |
| Cable Type | Coaxial |
| Cable Length | 6 ft |
| Connector on First End | 1 x 15-pin HD-15 Male VGA |
| Connector on Second End | 1 x 15-pin HD-15 Male VGA |
| Features | EMI Protection |
| Features | Ferrite Bead |
| Features | 90° Angled Connector |
| Features | Down-angled Connector |
| Features | Molded |
| Features | Strain Relief |
| Shielding | Yes |
| Device Supported | Monitor |
| Device Supported | Video Device |
| American Wire Gauge | 28 AWG |
| Physical Characteristics |
| Color | Black |
| Weight (Approximate) | 0.34 lb |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Country of Origin | China |
| Warranty |
| Limited Warranty | Lifetime |
