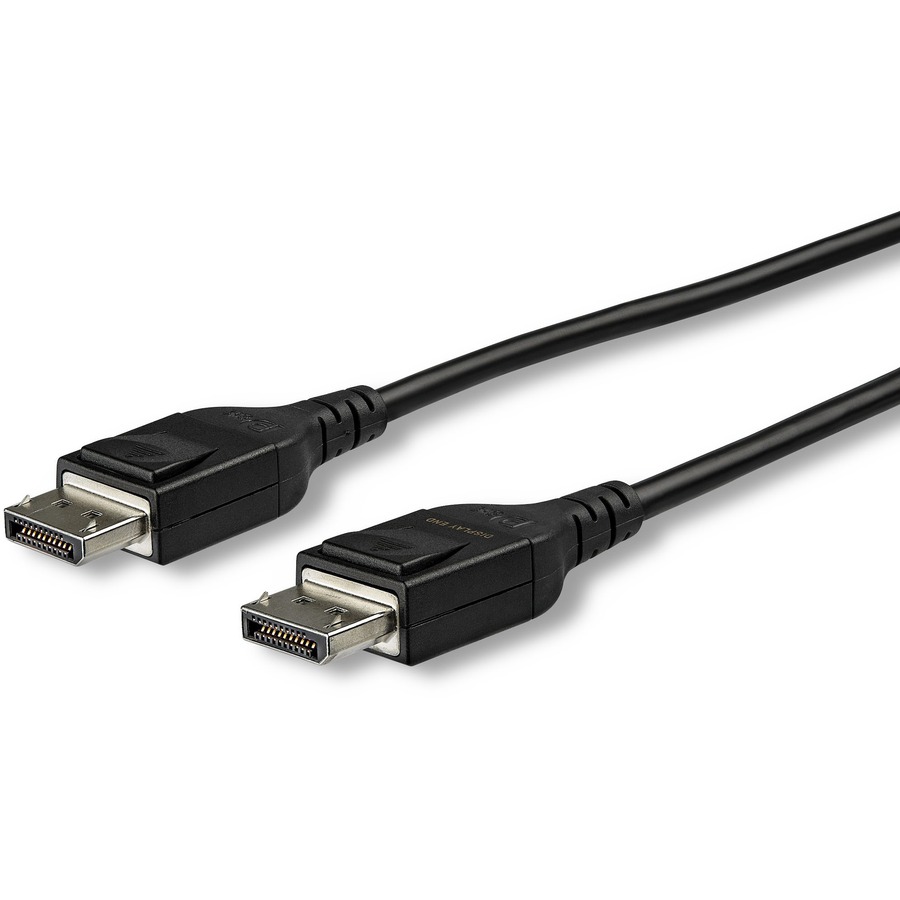

This active optical DisplayPort 1.4 cable lets you connect your DP laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. The built-in active signal booster ensures a reliable connection at a distance up to 15 m (49.2 ft.) between your DisplayPort enabled devices.
Experience What DisplayPort 1.4 Has to Offer
This 8K DisplayPort cable supports all DP 1.4 features:
- Resolutions up to 8K at 60Hz
- HDCP 2.2 support
- High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
- High Dynamic Range (HDR)
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- 32 uncompressed digital audio channels
- Backward compatible with 5K 60Hz, 4K 120Hz and previous generations of DP
Easy Installations
This durable yet lightweight active DP 1.4 cable features both copper and optical fiber conductors enabling a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The DisplayPort connectors also feature latches that provide a secure connection between your devices.
Comprised of a fiber and copper wire mix, this active cable is less susceptible to EMI interference, for a clear and reliable audio/video signal.
DP14MM15MAO is backed by a StarTech.com lifetime warranty and free lifetime technical support
Note: This cable features unidirectional architecture, please refer to the ""display"" label on the HDMI connectors to ensure installed in the correct direction.
| |
| Transource eSKU | 1061183004 |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP14MM15MAO |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 15 m (49.2 ft.) Active Optical DisplayPort 1.4 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| |
| Technical Information |
| Cable Type | Fiber Optic |
| Cable Length | 49.21 ft |
| Connector on First End | 1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video |
| Connector on Second End | 1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video |
| Connector Plating | Nickel |
| Features | Active |
| Features | Signal Booster |
| Features | HDCP 2.2 |
| Features | Flexible |
| Features | Locking Latch |
| Features | EMI Protection |
| Features | Latching Connector |
| Features | Display Stream Compression (DSC) 1.2 |
| Features | Multi-Stream Transport (MST) Support |
| Features | Strain Relief |
| Features | Stress Resistant |
| Shielding | Yes |
| Device Supported | Notebook |
| Device Supported | Audio/Video Device |
| Device Supported | Desktop Computer |
| Device Supported | Monitor |
| Device Supported | TV |
| Device Supported | Projector |
| Device Supported | Digital Signage Display |
| Device Supported | Graphics Card |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Physical Characteristics |
| Color | Black |
| Weight (Approximate) | 0.93 lb |
| Miscellaneous |
| Compatibility | - Dell XPS 11th Gen
- HP Z2 G8 Tower
- Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo
- NVIDIA Quadro P Graphics Cards
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Country of Origin | Taiwan |
| Warranty |
| Limited Warranty | Lifetime |
