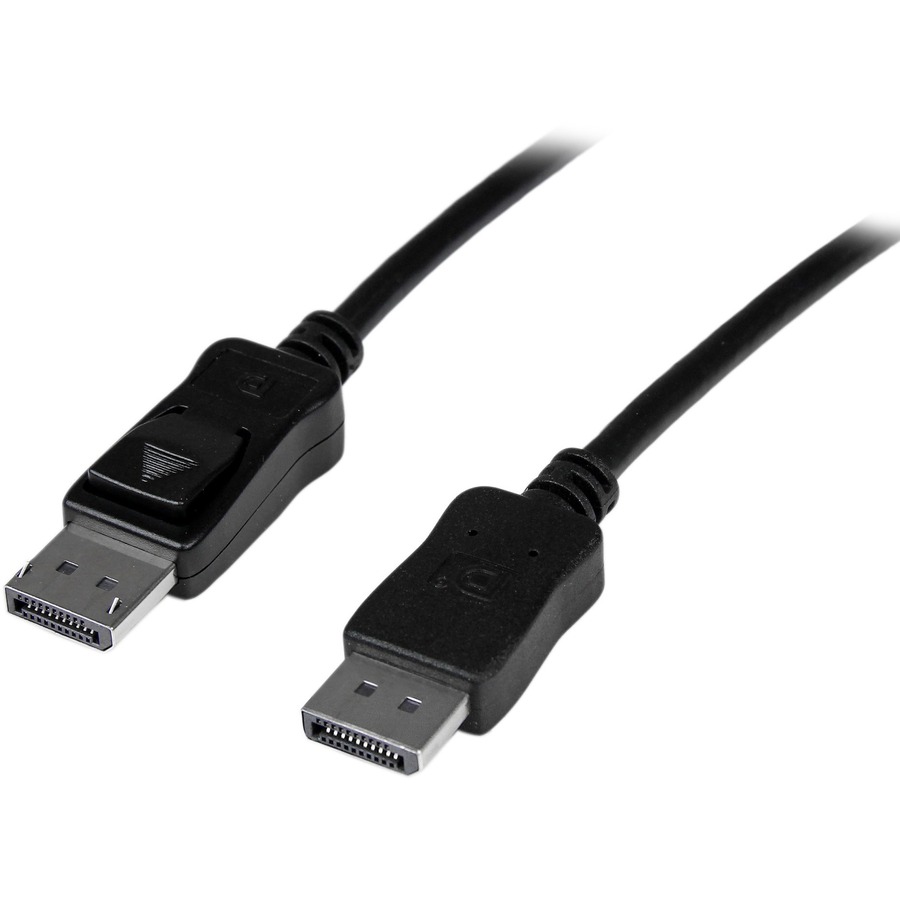

The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
| |
| Transource eSKU | 1026882534 |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DISPL10MA |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 10m Active DisplayPort Cable - DP to DP M/M |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| |
| Technical Information |
| Cable Type | DisplayPort |
| Cable Length | 32.81 ft |
| Connector on First End | 1 x 20-pin DisplayPort Male Digital Audio/Video |
| Connector on Second End | 1 x 20-pin DisplayPort Male Digital Audio/Video |
| Connector Plating | Nickel |
| Features | Active |
| Features | Signal Booster |
| Features | Flexible |
| Features | HDCP |
| Features | DPCP |
| Features | Latching Connector |
| Features | Multi-Stream Transport (MST) Support |
| Features | EMI Protection |
| Shielding | Yes |
| Jacket Type | CMG |
| Device Supported | Audio/Video Device |
| Device Supported | Monitor |
| Device Supported | Projector |
| Device Supported | Notebook |
| Device Supported | Workstation |
| Device Supported | Amplifier |
| Device Supported | Graphics Card |
| American Wire Gauge | 32 AWG |
| Data Transfer Rate | 10.8 Gbit/s |
| Supported Resolution | 3840 x 2400 |
| Physical Characteristics |
| Color | Black |
| Weight (Approximate) | 1 lb |
| Miscellaneous |
| Compatibility | FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty |
| Limited Warranty | 2 Year |
