| General Information |
| Manufacturer | MSI |
| Manufacturer Part Number | X570ACE |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Model | MEG X570 ACE |

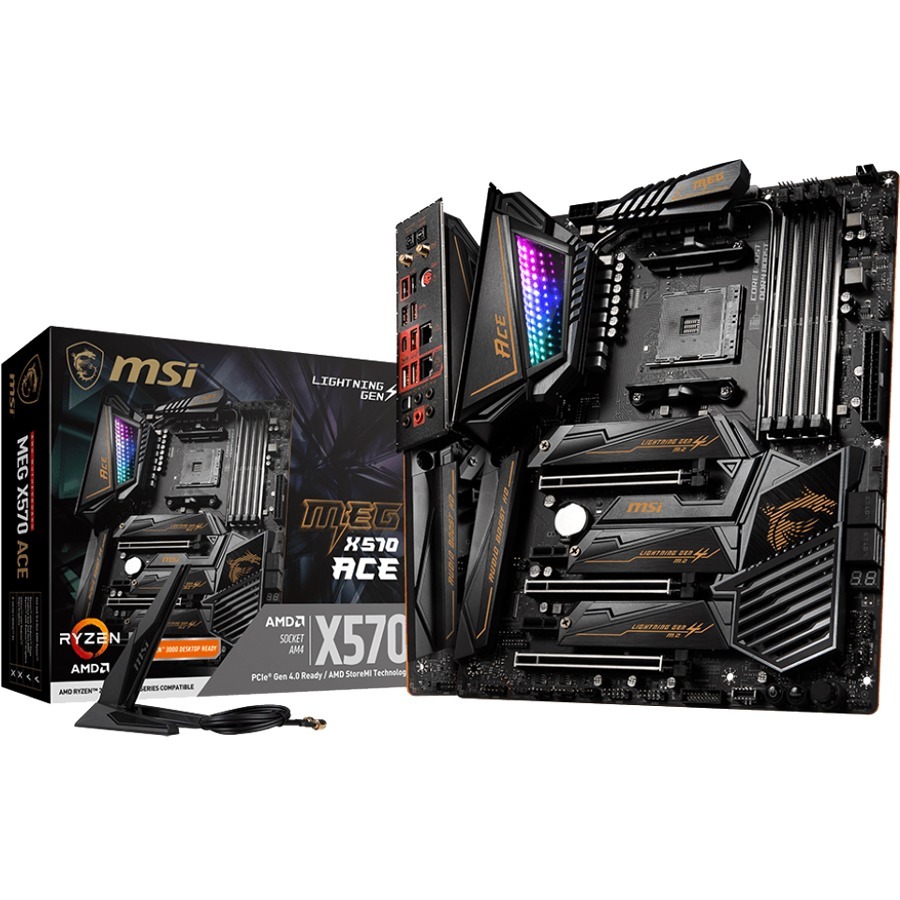

| Product Name | MEG X570 ACE Desktop Motherboard |
| Marketing Information | MEG X570 ACE is built to win. Outplay any opponent, crush entire teams, and come out on top of every match with a motherboard designed for the world's best players. |
| Product Type | Desktop Motherboard |
| Processor & Chipset |
| Chipset Manufacturer | AMD |
| Chipset Model | X570 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3 |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 5 PRO |
| Processor Supported | Ryzen 7 PRO |
| Multi GPU Supported | CrossFire |
| Multi GPU Supported | SLI |
| Memory |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 1866 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2666 MHz |
| I/O Controller |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| Video |
| Onboard Video | No |
| Audio |
| Audio Channels | 7.1 |
| Network & Communication |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions |
| Number of Total Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports |
| Total Number of USB Ports | 8 |
| S/PDIF | Yes |
| Onboard Interfaces |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 9 |
| Physical Characteristics |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous |
| Package Contents | - MEG X570 ACE Desktop Motherboard
- User Manual
- Shout Out DM
- Wi-Fi Antenna
- Product Registration Card
- Quick Installation Guide
- MSI Product Catalog
- 1 to 2 RGB LED Extention Y Cable
- SATA Cable Labels
- MSI Draw Pocket
- CORSAIR RGB LED Extention Cable
- Rainbow RGB LED Extention Cable
- MSI Case Badge
- Driver DVD
- 4 x SATA Cables
|
| Country of Origin | China |
| Warranty |
| Limited Warranty | 3 Year |
