Processor |
| Number of Processors Supported |
1 |
| Number of Processors Installed |
1 |
| Processor Manufacturer |
AMD |
| Processor Type |
EPYC |
| Processor Generation |
3rd Gen |
| Processor Model |
7313P |
| Processor Core |
Hexadeca-core (16 Core) |
| Processor Speed |
3 GHz |
| Cache |
128 MB |
Chipset |
| Chipset Manufacturer |
AMD |
Memory |
| Standard Memory |
32 GB |
| Maximum Memory Supported |
1 TB |
| Memory Technology |
DDR4 SDRAM |
| Memory Clock Speed |
3.20 GHz |
| Total Number of Memory Slots |
16.0 |
| Number of Occupied Memory Slots |
1 |
| Signal Processing |
Registered (Buffered) |
Storage |
| Number of Hard Drives |
No |
| Optical Drive Type |
No |
Controllers |
| Controller Type |
12Gb/s SAS |
| Controller Model |
P408i-a SR |
| RAID Supported |
Yes |
I/O Expansions |
| Number of Total Expansion Bays |
8 |
| Number of Internal 2.5" Bays |
8 |
| Number of SFF Bays |
8 |
| Hot Swappable Bays |
Yes |
| Total Number of Expansion Slots |
3.0 |
| PCI Express Details |
PCI-Express 4.0 Slots 3-slots (x16, x16 in primary) |
Display & Graphics |
| Graphics Memory Capacity |
16 MB |
Network & Communication |
| Ethernet Technology |
Gigabit Ethernet |
Interfaces/Ports |
| Total Number of USB Ports |
4 |
| Number of USB 3.1 Type-A Ports |
4 |
| Network (RJ-45) |
Yes |
| Number of Network (RJ-45) Ports |
4 |
| VGA |
Yes |
| Remote Management |
Yes |
| Remote Management Controller |
HPE iLO 5 |
Operating System |
| Operating System Supported |
Windows Server 2016 |
| Operating System Supported |
Windows Server 2019 |
| Operating System Supported |
SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported |
SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported |
Red Hat Enterprise Linux 8.3 |
| Operating System Supported |
Red Hat Enterprise Linux 8 |
| Operating System Supported |
Red Hat Enterprise Linux 7.6 |
| Operating System |
No |
Power Description |
| Input Voltage |
120 V AC |
| Input Voltage |
230 V AC |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
1 |
| Maximum Power Supply Wattage |
500 W |
| Hot Swappable Power Supply |
Yes |
Physical Characteristics |
| Form Factor |
Rack |
| Rack Height |
2U |
| Height |
3.4" |
| Width |
17.5" |
| Depth |
28" |
| Weight (Approximate) |
50.93 lb |
Miscellaneous |
| Package Contents |

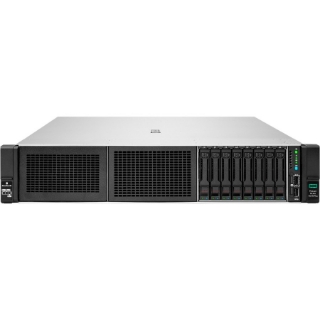

- ProLiant DL345 G10 Plus Server
- 6-foot IEC C-13/C-14 Jumper Cord
|
| Security Features |
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation (iLO 5 certification in progress)
- Common Criteria certification (iLO 5 certification in progress)
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- Tamper-free updates - components digitally signed and verified
- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
- Ability to rollback firmware
- Secure erase of NAND/User data
|
| Energy Star |
Yes |
| Environmentally Friendly |
Yes |
| Energy Efficiency Certification |
ENERGY STAR 3.0 |
| Environmental Compliance |
Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty |
| Limited Warranty |
3 Year |
| Additional Warranty Information |
3-year parts, 3-year labor, 3-year onsite support with next business day response. |
